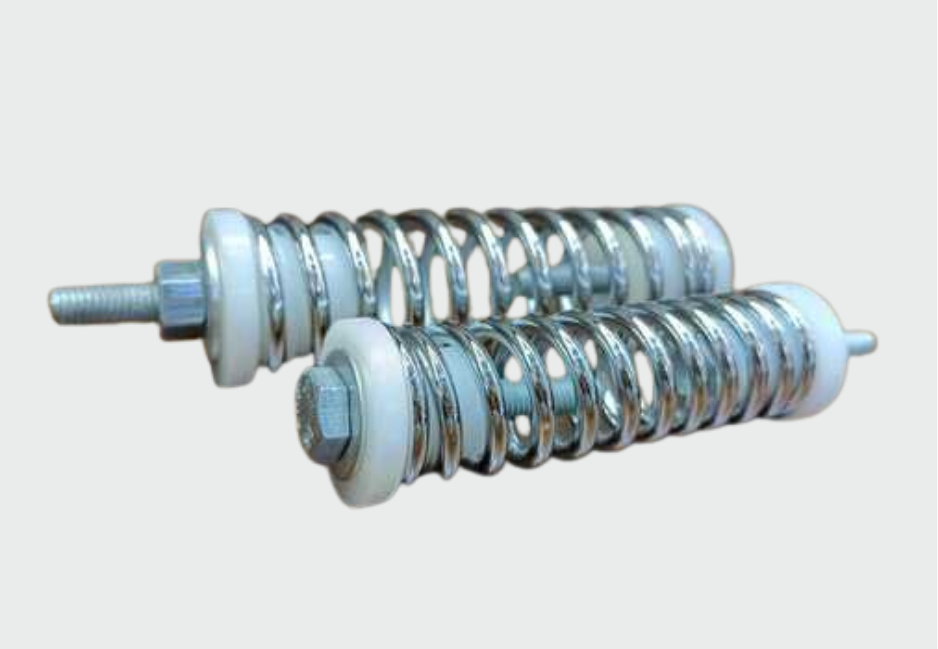

Retainer with spring

Retainer with spring 2

Retainer with spring

Mech Tech Steel Industries provides premium-grade Unbalance Vibratory Motors, the powerhouse behind efficient screening, conveying, and compaction processes. These motors operate on the principle of centrifugal force, generated by high-precision unbalanced weights attached to both ends of the motor shaft.
Engineered for extreme durability and continuous industrial duty, our vibratory motors allow for easy adjustment of vibration intensity, ensuring they meet the specific requirements of your machinery and material characteristics.
  • Adjustable Centrifugal Force: The vibration intensity can be easily tuned by simply changing the angular position of the unbalanced weights on the shaft.
  • Heavy-Duty Construction: Built with high-quality Cast Iron or Aluminum housing to withstand high-G forces and harsh industrial environments.
  • Superior Protection: Rated at IP55 / IP65, our motors are completely dust-proof and weather-proof, ensuring reliable performance in outdoor or dusty conditions.
  • High-Temperature Resistance: Featuring Class F or H insulation, these motors are designed to operate safely even in high-temperature applications.
  • Maintenance-Free Design: Equipped with heavy-duty, oversized bearings to ensure a long service life with minimal maintenance requirements.
  • Continuous Operation: Engineered for 24/7 industrial use without overheating or loss of performance.
  • Energy Efficient: Optimized electrical design provides high starting torque and maximum centrifugal force with low power consumption.
  • Low Noise Levels: Precision-balanced components ensure that while the vibration is powerful, the operational noise remains within safe industrial limits.
  • Versatile Mounting: Available in both Foot-mounted and Flange-mounted versions to fit seamlessly into Sifters, Feeders, or Compaction tables.
  • Global Standard Compliance: Designed to work with standard power grids (50 Hz / 60 Hz) and available in both single-phase and three-phase options.
  • Vibratory Screens & Sifters: Providing the necessary motion for precise particle separation.
  • Vibratory Feeders: Ensuring a consistent and metered flow of bulk materials.
  • Compaction Tables: Used in foundries and construction for settling materials in molds or containers.
  • Bin Activators: Preventing material bridging and "rat-holing" in silos and hoppers.
  • Conveying Systems: Driving vibratory conveyors for the movement of fragile or abrasive bulk solids.
  • Power Range 0.25 HP to 10 HP
  • Input Frequency 50 Hz / 60 Hz
  • Electrical Phase Single-Phase / Three-Phase
  • Protection Class IP55 / IP65 (Dust & Water Resistant)
  • Insulation Class Class F or Class H
  • Housing Material High-Grade Cast Iron / Robust Aluminum
  • Mounting Options Foot-Mounted / Flange-Mounted
  • Bearing Type Heavy-duty, High-load Capacity Bearings

Frequently Asked Questions

How do I adjust the vibration force of the motor?

The force is adjusted by loosening the bolts on the unbalanced weights at both ends of the motor shaft. By rotating the outer weight relative to the inner fixed weight, you can increase or decrease the centrifugal force percentage (from 0% to 100%).

Yes. Due to the torque-efficient design and the ability to use specialized screw flights (like ribbon flights), it is excellent for handling sticky, sluggish, or non-free-flowing materials that might clog other systems.
Foot-mounted motors are typically used on the sides of sifters or feeders, while Flange-mounted motors are used when the motor needs to be attached directly to the face of a machine, common in some specialized screening equipment.
Our motors are built for Reliability and Durability. We use high-grade copper winding and superior bearings that are designed to handle the constant stress of high-frequency vibration, resulting in much lower downtime for your plant.
Yes, our motors are compatible with VFDs, allowing you to control the frequency (speed) of the vibration to fine-tune your material processing.
